Day 38 - Structural Works

The first steel was fitted today and its already made a huge difference.

Photo 1

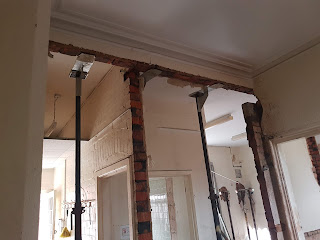

 Photo 1 shows the steel in place between the old dining and breakfast rooms.
Photo 2
 Photo 2 shows the chimney starting to be removed. Eventually this entire wall is going to be removed.
Photo 3
Photo 3 shows the same steel from Photo 1 with the acro props removed.

Photo 4

Photo 5
Photos 4 and 5 show the same chimney from Photo 2 but on the first floor bedroom.

Photo 6
Photo 6 shows the same chimney removed from the second floor bedroom.
Photo 7
A glimpse of whats behind the sloping ceiling on the second floor bedroom. This will need to be removed and filled with insulation.

Photo 8
There is about 100mm of depth in the rafters that can be filled with insulation before fitting plasterboard.

Photo 9
 The wall in the hallway was the next to be removed.
Photo 10
 I asked the builders to make the knock-through a little lower here so that we could retain the cornice.
Photo 11

Photo 12
 Padstone in place ready for the steel.
Photo 13
View from inside the old breakfast room.
Photo 14
View from the hallway. The wall directly in front will also be removed, opening up the hallway here.

Photo 15
Padstone in place for steel.

Photo 16
Padstone visible from inside drawing room. Builders did a good job in not damaging the picture rail.
